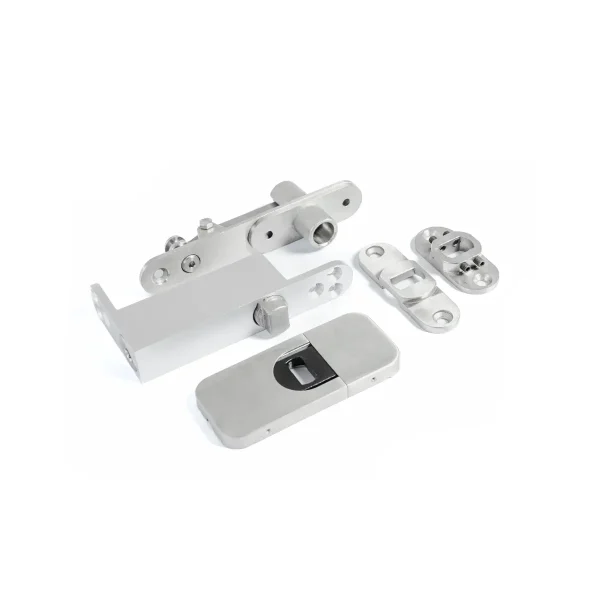

Pivot Hinge | HP500 | BAYMAX Prime

See product map Brand: HTN Prime

See product map Categories: Door Hinge, Pivot door hinge

See product map SKU: N/A

Color

Clear

$ 261,44

Product Introduction Product Feature Technical Specification Comments

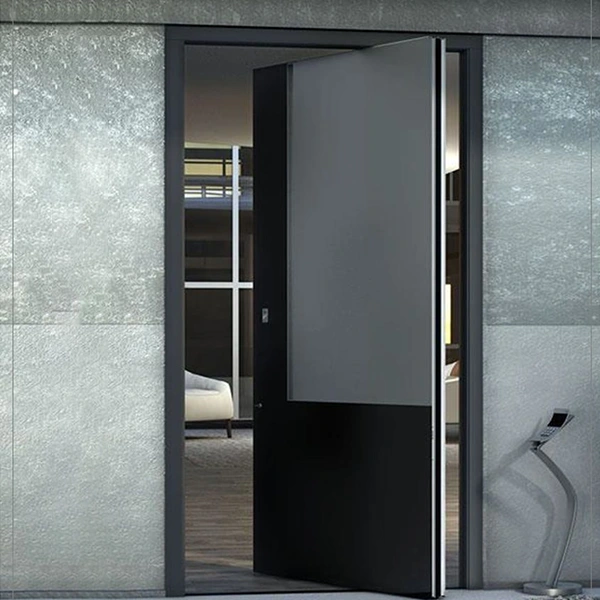

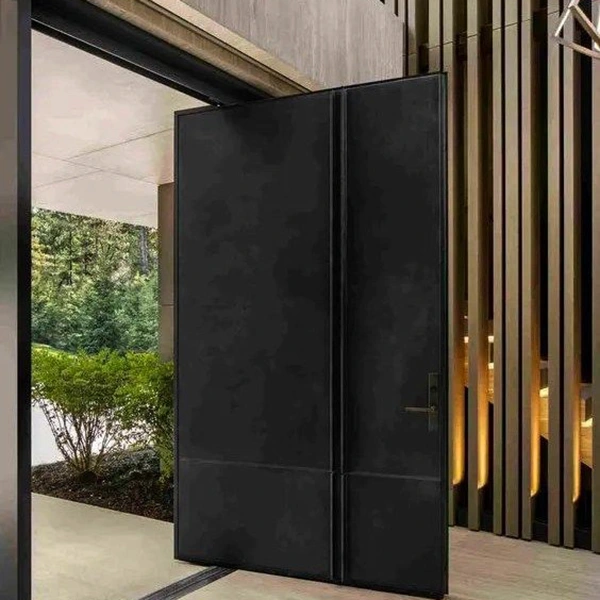

The pivot hinge—also known as an axis hinge—is designed for large doors and is capable of supporting significant weight. Installed at the top and bottom of the door, it enables smooth and effortless operation, allowing the door to open and rotate around a vertical axis. These hinges are commonly used in commercial and office settings, as well as in specific residential architectural designs. Pivot hinges give the doors a beautiful and modern appearance due to their hidden installation, not requiring a frame. This type of hinge is suitable for people who are looking for minimal styles with the fewest details. Because using this hinge makes no additional details visible in the door. These hinges are usually able to bear more weight than normal hinges and can easily support heavy and large doors. This model is suitable for doors weighing up to 100 kg and its stop angle is 90 and 180 degrees. HP500 pivot hinge is installed on the side and top of the door and closes automatically. This hinge is suitable for doors up to 100 cm wide and 32 cm high. The HP500 pivot hinge accommodates doors of various sizes and weights, offering architects and interior designers greater design flexibility. Installing a pivot hinge is a specialized task that requires creating a recess at the top or bottom of the door; therefore, it is advisable to seek the assistance of professionals. To ensure optimal performance, the hinge should be lubricated periodically to maintain smooth operation.

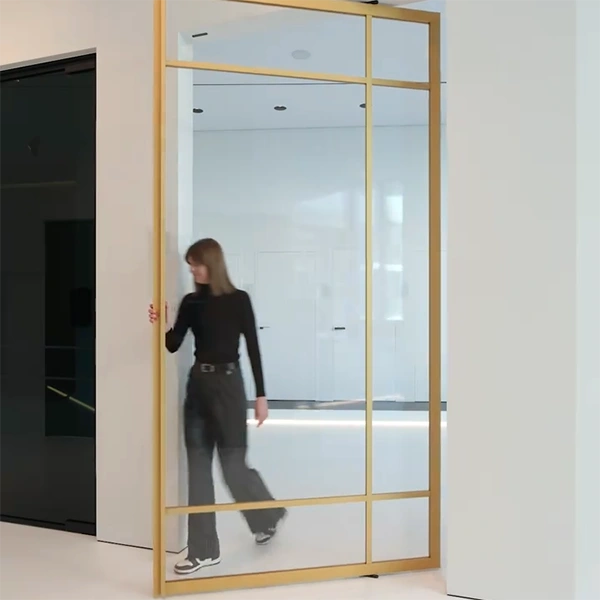

https://www.aparat.com/v/cerl18h

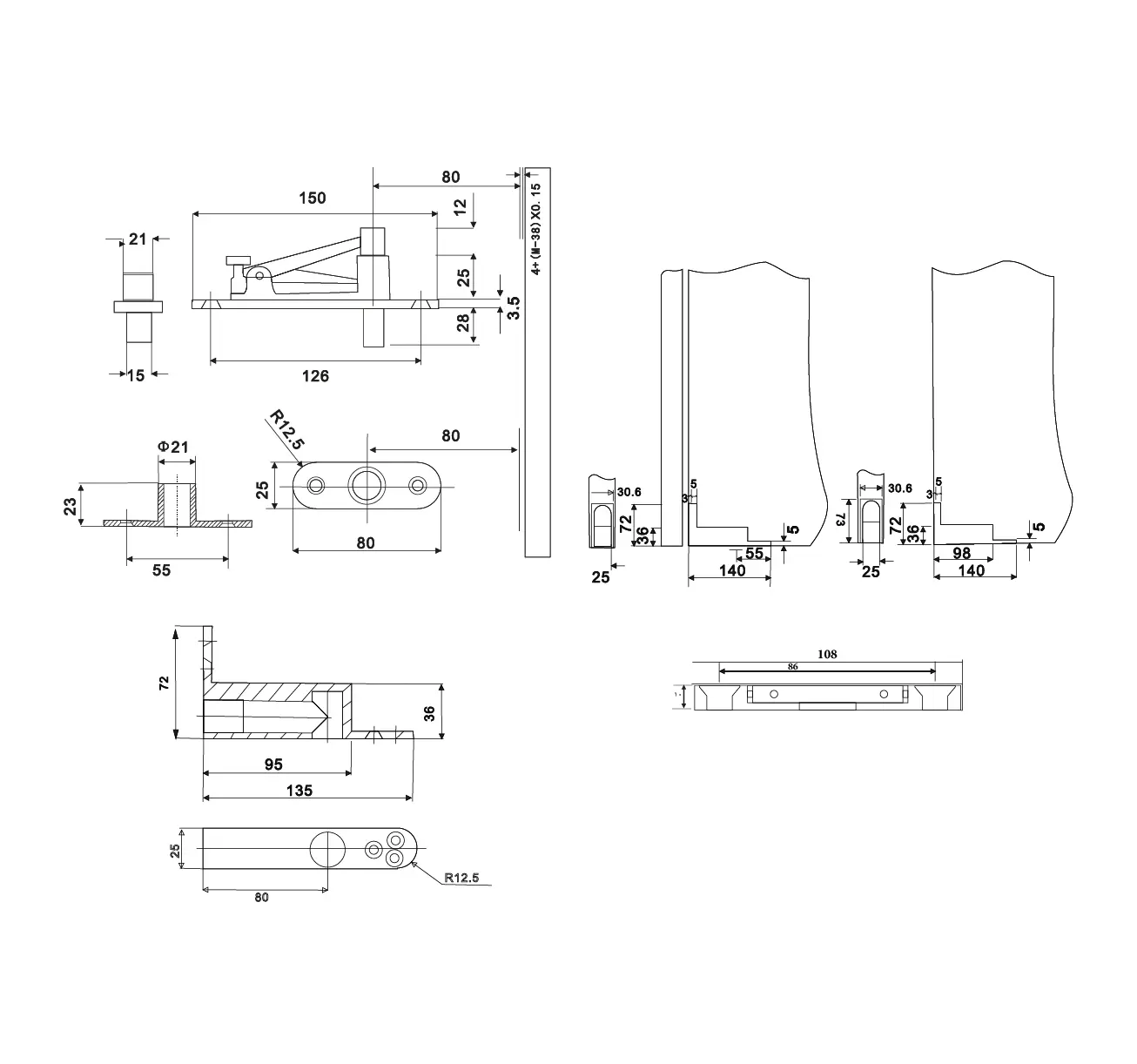

Material	Steel
Maximum door weight	100 kg
Adjustable angle	90 and 180 degrees
Maximum door width	100 cm
Maximum door height	320 cm

Additional information

Brand	HTN Prime
Color	silver

1. Two-step authentication: Open the door by combining two identification methods (password, fingerprint, card or face recognition) to increase security.
2. Passage Mode: Put the lock in a temporary open state for a specified period of time without the need for authentication.
3. Child Lock: Restricts the door from opening from the inside when activated to prevent children or unauthorized persons from leaving.
4. Human body recognition sensor: A sensor that detects the presence or movement of people, enabling faster and contactless entry.
5. Palm Vein Recognition: Accurate and unforgeable security by identifying the pattern of palm veins.
6. Finger Vein Recognition: Unforgeable and secure identity by identifying the pattern of finger veins.
7. Deadbolt lock: An internal lock with a simple lever that prevents the door from being opened from the outside but can be easily opened from the inside.
8. One-time password (OTP): A time-limited, one-time-use temporary code for temporary, secure access.
